• Easy-to-use with bright, multicolor LCD
• Ready to measure — comes with everything needed for testing
• Audibly and visibly alerts when flaws/holidays are detected
• Lightweight, ergonomic design provides comfortable all-day use, reducing fatigue
• Voltage calculator feature — choose one of 11 international standards, and input the coating thickness to automatically calculate the required test voltage

• A wide range of rolling spring electrodes and wire brushes are available. Custom sizes available upon request.

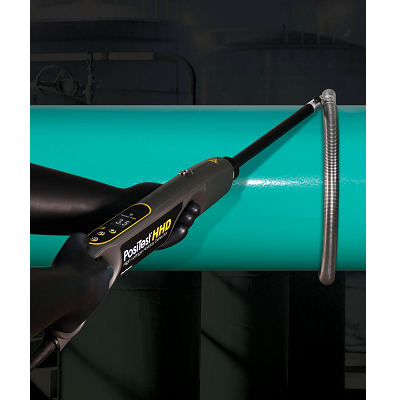

• Optional handheld wand accessory coverts the detector into a wand configuration ideal for testing hard-to-reach areas (suitable for voltages
  < 15 kV)
• Industry-standard connectors and adaptors for compatibility with nearly all existing electrodes
• User adjustable voltage range from
  0.5 – 35 kV

• Rugged, environmentally sealed ABS plastic enclosure
• Weatherproof, dustproof and shockproof
• Included Pelican Storm case with custom foam inserts for superior protection
• Two year warranty

• Strobe light and loud audible alarms emitted when a holiday is detected. Audio alarm mode can be adjusted for differing environments.
• Removable Smart lithium-ion battery provides power for up to 40 hours of continuous measurement

• Press and hold Safety Trigger helps prevent accidental high voltage generation
• 7.6 m (25′) ground (earth) cable with locking connector and spring clamp
• Shock proof/creep proof — internally sealed to minimize creep distance to high voltage components. Designed in accordance with IEC 61010-1.

• Built-in certified voltmeter (crest meter, jeep meter) displays and regulates the voltage at the electrode
• Long Form Certificate of Calibration included with each instrument
• Conforms to national and international standards including ISO, ASTM and NACE
