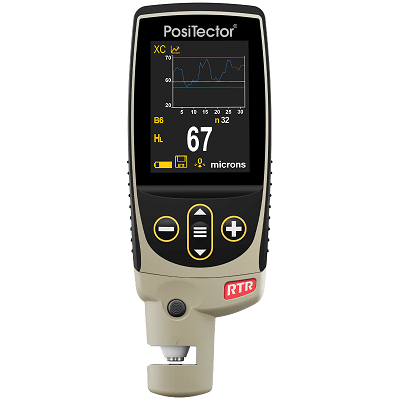

Positector® RTR H Surface Profile Gage For Blasted Steel And Textured Coatings

Ready to measure—no calibration adjustment required for most applications
NEW Larger 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration showing traceability to PTB included (Long Form)

Conforms to ASTM D4417, ISO 8503-5, NACE RP287, SSPC-PA 17, SSPC-SP5, SP6, SP10, SP11-87T and others

Measures peak height (HL)
Automatically subtracts the 50.8 μm (2 mils) incompressible film from all readings
Minimizes inspector workload by reducing the number of replicas needed to ensure accuracy
NEW Larger 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW On-gage help explains menu items at the touch of a button
RESET feature instantly restores factory settings

Produces a more accurate peak-to-valley height measurement. See linearized peak height (HL)
Certificate of Calibration showing traceability to PTB included (Long Form)
Conforms to national and international standards including ISO 8503-5, ASTM D4417 Method C, NACE RP0287 and SSPC-PA17

PosiTector body accepts all PosiTector RTR, SPG, 6000, 200, DPM, IRT, SST, SHD, BHI, and UTG probes easily converting from a surface profile gage to a coating thickness gage, dew point meter, soluble salt tester, hardness tester, or ultrasonic wall thickness gage
Mils/Microns switchable
Selectable display languages
NEW Auto rotating display with Flip Lock

Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
NEW Screen Capture—save 100 screen images for record keeping and review
NEW Instant-on feature quickly powers up the gage if recently powered down
NEW Up to 30% longer battery life
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Every stored measurement is date and time stamped
Software Solutions for viewing, analyzing & reporting data
Software Updates via web keep your gage current

Peak Height (HL) Measurement Range	20 to 115 μm (0.8 to 4.5 mils)
Peak Height (HL) Accuracy	± 5 μm (± 0.2 mils)
Peak Height (HL) Resolution	1 μm (0.1 mil)
Anvil Diameter	Ø6.35 mm (Ø0.25 inch)
Anvil Pressure	110 gram-force (1.1 Newtons)
Size	152 x 61 x 28 mm (6″ x 2.4″ x 1.1″)
Weight	140 g (4.9 oz.) without batteries
